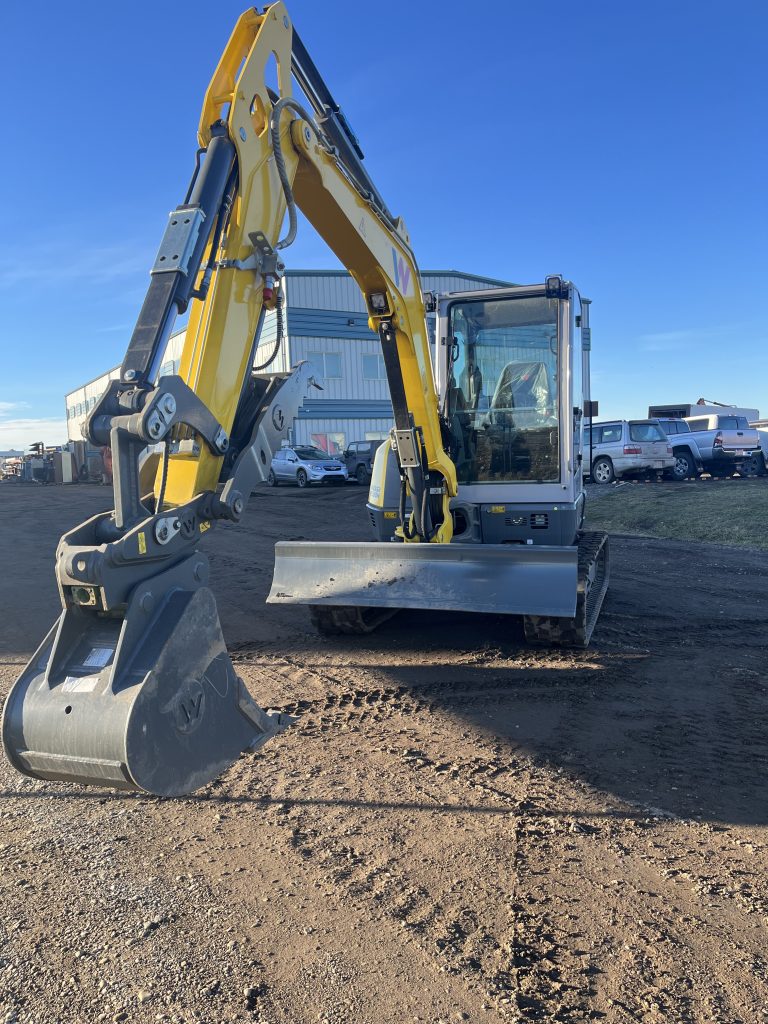

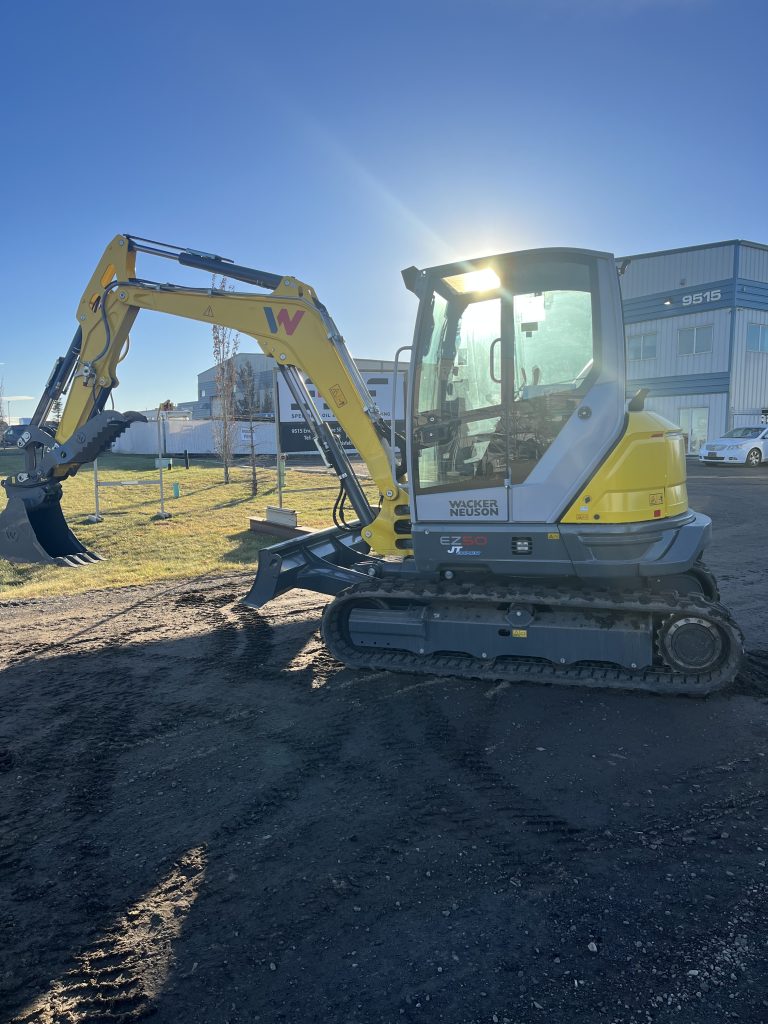

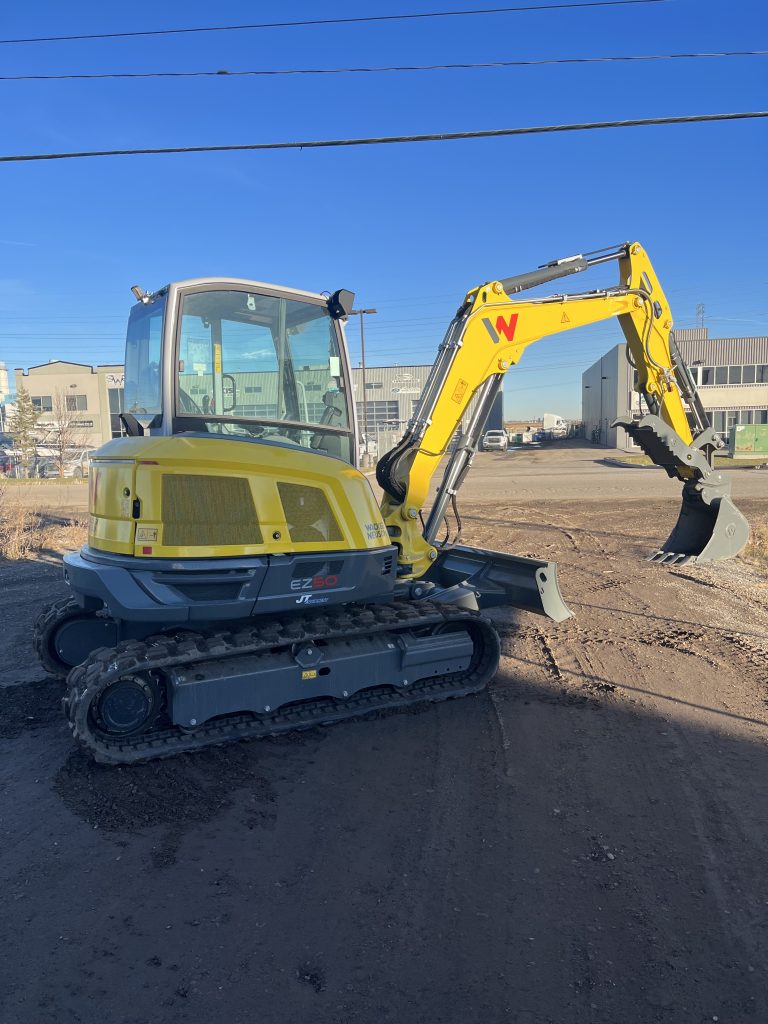

Wacker Neauson EZ50

Wacker Neuson EZ50

• Flexible cylinder rod protection
• 3-point kinematics
• Active Working Signal (AWS)
• Load Sensing Flow Sharing
• Zero Tail

Standard Components
General

• Rubber track: 400 mm
• Dozer blade
• LED work light mounted on lifting arm
• AWS (Active Working Signal) on the engine hood (red LED strips that signal the machine’s readiness to work)
• Toolkit, including grease press and operator’s manual

Engine

• Liquid-cooled Perkins diesel engine, model 403J-E17T, 3-cylinder/1,662 ccm, net output (Power Mode) according to ISO 14396: 32.5 kW (44.2 hp), nominal speed 2,000 rpm (stage 5)
• Auto idling system

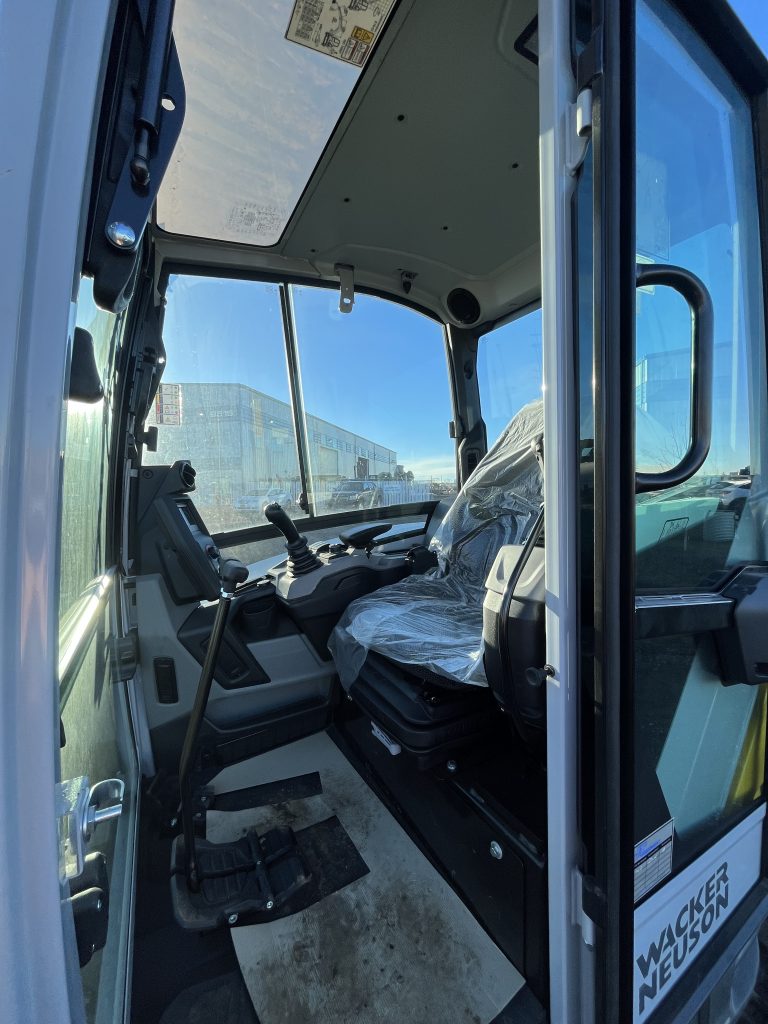

Canopy

• Adjustable, sprung comfort seat with artificial leather cover and safety belt
• Canopy (and cabin) meets the current ROPS, TOPS and FOPS* regulations

Hydraulics

• Load Sensing Flow Sharing hydraulic system (max. discharge volume 126 L/min, max. working pressure 245 bar)
• Hydraulic pilot control via joystick operation
• Valve control according to ISO, DIN, SAE, PCSA and EURO
• Auxiliary hydraulic connections for 2 directions of travel on shovel arm | AUX I
• Automatic 2-speed transmission, 2 travel speeds automatically switched, 2nd gear manually lockable
• Hydraulically dampened drive pedals and forward + reverse travel lever
• Hydraulic oil cooler
• Parking brake for undercarriage and slewing system
• Proportional control for AUX I; adjustable and programmable discharge volume via jog dial
